    ASTM A214 Heat Exchanger Electric Resistance Welded Carbon Steel Pipe

    Ask Lasest Price
    Certification : ISO 9001 ISO14001 TS16949
    Price : negotiable
    Brand Name : Sanxin
    • Product Details
    • Company Profile

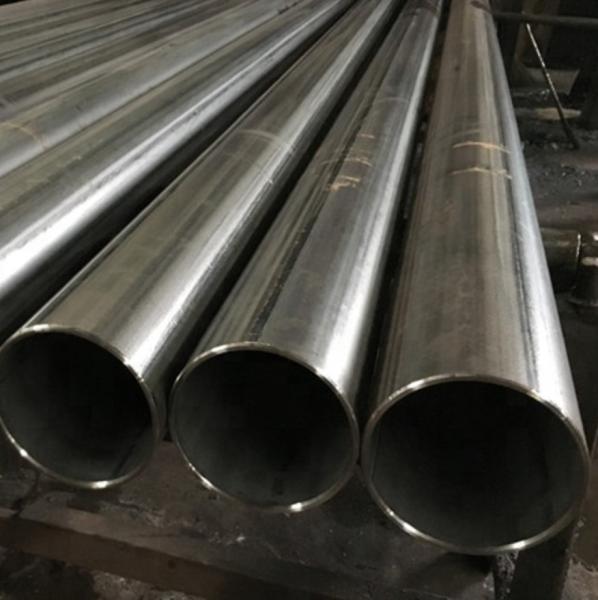

    ASTM A214 Heat Exchanger Electric Resistance Welded Carbon Steel Pipe

    ASTM A214 Heat Exchanger Electric Resistance Welded Carbon Steel Pipe


    .jpg

    ASTM A214 Carbon Steel Heat Exchanger Electric Resistance Welded Pipe


    ASTM A214 Electric resistance welded carbon steel heat exchanger and condenser tubes


    Applications: for Boilers,Superheaters,Heat-Exchangers, Condensers


    Size range: O.D.:6-76mm W.T.:0.9-19.0mm L: according to customer requirement

    Manufacture:

    Tubes are made by electric-resistance welding.

    Surface Condition:

    The finished tubes are free of scale., slight amount of oxidation is not considered as scale

    Heat treatment:

    After welding, all tubes are heat treated at a temperature of 1200℉(650℃) or higher and following by cooling in air or in a cooling chamber of a controlled atmosphere furnace.

    Cold drawn tubes shall be heat treated after the final cold-draw pass at a temperature of 1200℉(650℃) or higher

    ASTM A214 Carbon Steel Heat Exchanger Electric Resistance Welded Pipe

    Test and Inspection:

    Hardness Requirement

    Mechanical Test

    - Flattening Test

    - Flange Test

    - Reverse Test

    - Hydrostatic or Nondestructive Electric Test

    Steel Grade and Chemical Compositions:

    C0.18
    Mn0.27 to 0.63
    P≤0.035
    S≤0.035


    Mechanical Properties
    Tensile Streghth: min ksi[Mpa] 47[325]
    Yield Point: min ksi[Mpa] 26[180]
    Elongation: ≥35%
    Hardness: ≤72HRB

    Tolerance for OD and WT(SA-450/SA-450M)
    OD in(mm)+-WT in(mm)+-
    <1''(25.4)0.100.10≤1.1/2''(38.1)20%0
    1''~1.1''(25.4~38.1)0.150.15>1.1/2''(38.2)22%0
    >1.1/2''~<2''(38.1~50.80.200.20
    2''~<2.1/2''(50.8~63.5)0.250.25
    2.1/2''~<3''(63.5~76.2)0.300.30
    3''~<4''(76.2~101.6)0.380.38
    4''~<7.1/2''(101.6~190.5)0.380.64
    >7.1/2~9''(190.5~228.6)0.381.14

    ASTM A214

    .jpg


    QUALITY CONTROL

    1~ Incoming Raw Material Inspection
    2~ Raw Material Segregation to avoid steel grade mix-up
    3~ Heating and Hammering End for Cold Drawing
    4~ Cold Drawing and Cold Rolling, on line inspection
    5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
    6~ Straightening-Cutting to specified length-Finished Measuring Inspection
    7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
    8~ Packing and Stocking.

    PACKING &DELIVERY

    Packing Details : In bundles or in wooden boxes packaging
    Delivery Details : 30-60days

    .jpg
